Please note: This version of the Goggle is drkstore.in branded but works identical to the original VR009.

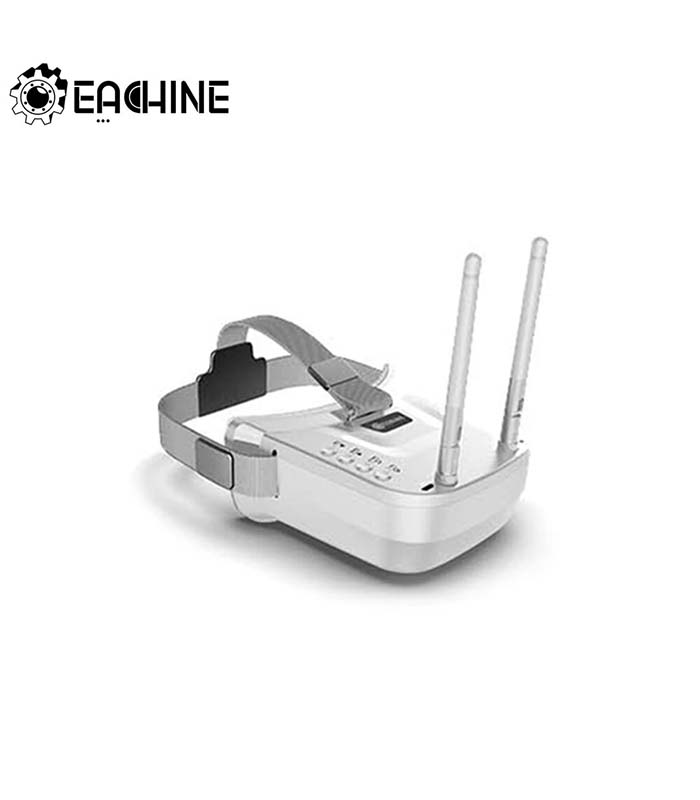

Specification of Eachine VR009:
Model | Eachine/drkstore VR009 |
Name | Mini FPV Goggles |
LCD Screen | Screen size: 3.0 Inch |
Resolution: 480*320 | |
Display Ratio: 16:9 | |
View Angle: 6 o’clock | |
Brightness: 500cd/m² with high brightness backlight LED | |
Video delay | Video time-delay less than 20ms |
Lens | 4X Fresnel Lens, 92% transparent rate no distort of light |
Interface | Antenna: 2 X RP-SMA male |
USB: To charge the battery | |
AV Jack: External video signals input or internals AV signal output | |
Languages | English and Chinese |
Power Supply | Power adapter: DC5V/1A (USB interface) |
Battery: 3.7V/1200mAh,Each full charge revive around 2.5hr working time | |
Power Consumption:
*The device operating current of 300~330mA at 3.7~4.2V; *Built-in battery maximum charge current of 500mA; |
|
Body | Dimension: 13.5cm * 13.2cm * 6.5cm |
Weight: 180g(with headband, not included antennas) |
Feature of Eachine VR009:
– Small size and light weight;
– Low power consumption, Working current 300~330mA;
– Double antenna reception to make the signal more stable;
– RaceBand 40 channel, Auto-Searching;
– 3.0 Inch 480*320 dot high brightness LCD screen;
– Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
– Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
– Universal USB charging interface;
– Real-time video return, Very low time delay;
– Bilingual menu in support of Chinese and English;
– Support external video signal input;
– Support AV signal output (Connect external DVR);
Band and Channel selection:
CH CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
GROUP
A 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ
B 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ
E 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ
F 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ
R 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ
Looking for a 5-inch display FPV goggle? Check out the Eachine EV800 and the EV800D from drkstore.in
