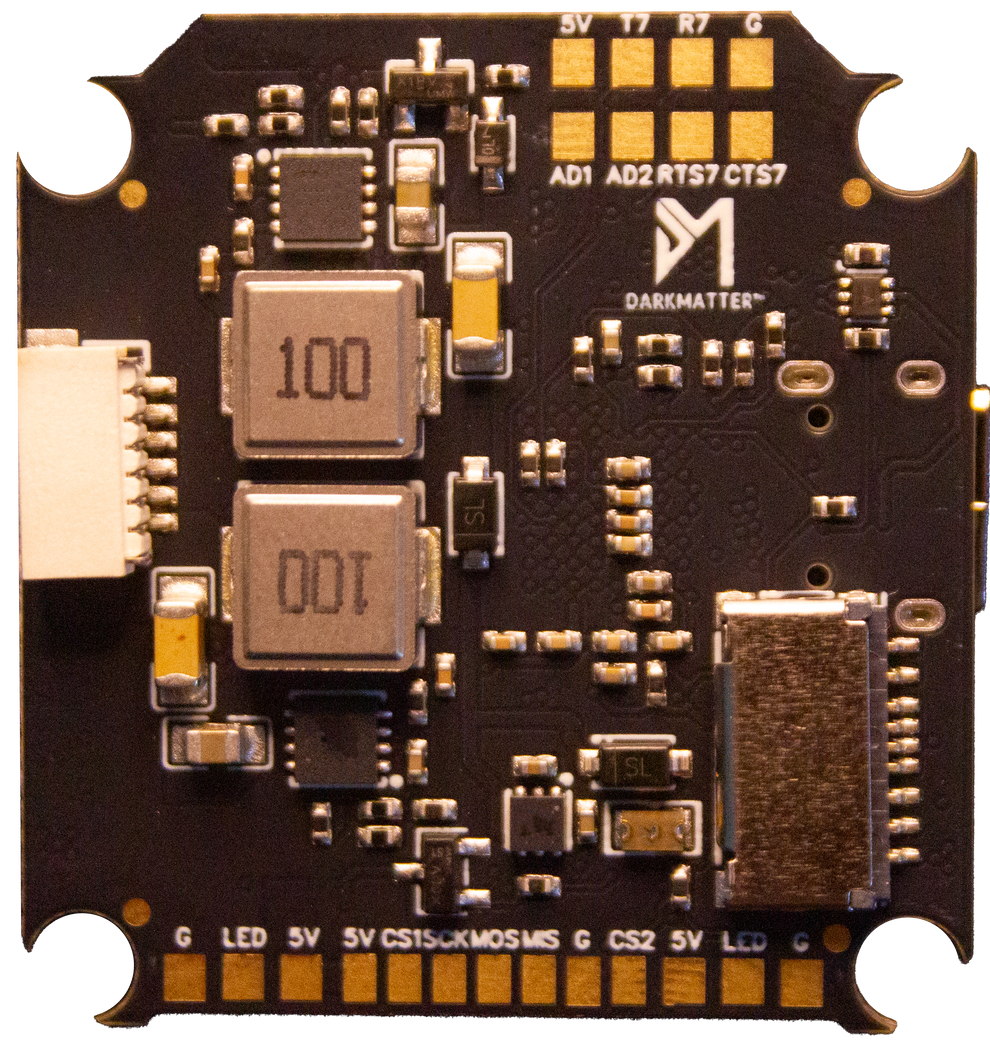

BRAHMA H7 – Flight Controller Highlights

Blazing-Fast H7 Processing Power

At the heart of the BRAHMA H7 is the STM32H743 (480MHz) processor — one of the fastest MCUs used in modern drone flight controllers. This ensures ultra-responsive flight performance, faster filtering, improved stability, and exceptional handling in both manual and autonomous modes.

Dual IMU for Maximum Stability

Equipped with Dual ICM42688 gyroscopes, the flight controller delivers superior noise resistance, smoother filtering, and exceptionally accurate attitude sensing — even on high-vibration frames or heavy-lift rigs.

Precision Altitude & Visual Overlay

Features a DPS310 barometer for reliable altitude data, and the AT7456E OSD chip for clean, customizable on-screen overlays in both analog and hybrid setups.

Full-Size SD Blackbox Logging

A built-in microSD slot allows high-rate Blackbox logging, making tuning, performance analysis, and mission diagnostics easier than ever.

Unmatched Connectivity & Expandability

The BRAHMA H7 is engineered for serious builders with extensive I/O options:

• 7 UART ports for GPS, telemetry, receivers, and digital FPV
• 2 I2C ports for magnetometers, airspeed sensors, and more
• 2 SPI breakouts for advanced peripherals
• CAN port for next-gen sensors and autopilot devices
• RSSI, SBUS, SmartPort support
• Type-C USB for modern connectivity

Supports Up to 10 Motors

Perfect for large builds, heavy-lift platforms, and experimental drones.

• Dual ESC plug-and-play ports (M1–M4 & M5–M8)
• Direct solder pads for M9–M10
  Ideal for X8, Y6, VTOL, and coaxial configurations.

Advanced Power Distribution

Multiple clean, regulated outputs ensure stable powering of all accessories:

• 5V (3A across 9 groups)
• 9V (3A) switchable ON/OFF for VTX
• 4.5V (USB-powered) for receivers during configuration
• 3.3V (1A) for compasses and sensors

Digital VTX Ready

Includes digital VTX plug-and-play interface with switchable 9V power — improving safety and enabling faster GPS lock.

Comprehensive PWM & IO Support

• 13 total PWM outputs
• Dedicated relay IO
• 2 NeoPixel LED pads
• Multiple ADC inputs

Designed for Harsh Conditions

With an operating range of –20°C to 70°C and robust ESD + reverse polarity protection, the BRAHMA H7 ensures long-lasting reliability.

Compact & Lightweight

• Dimensions: 37 × 35.5 × 8 mm
• Mounting: 30.5 × 30.5 mm (M4)
• Weight: Just 9g

Proudly Made in India

Developed with high-quality components and advanced manufacturing, the BRAHMA H7 reflects the innovation and technical leadership of Indian drone engineering.

BRAHMA H7 – Power, Precision & Professional Capability

From FPV professionals to autonomous drone developers, the BRAHMA H7 delivers the performance, flexibility, and build quality needed for modern high-end multirotor systems.
