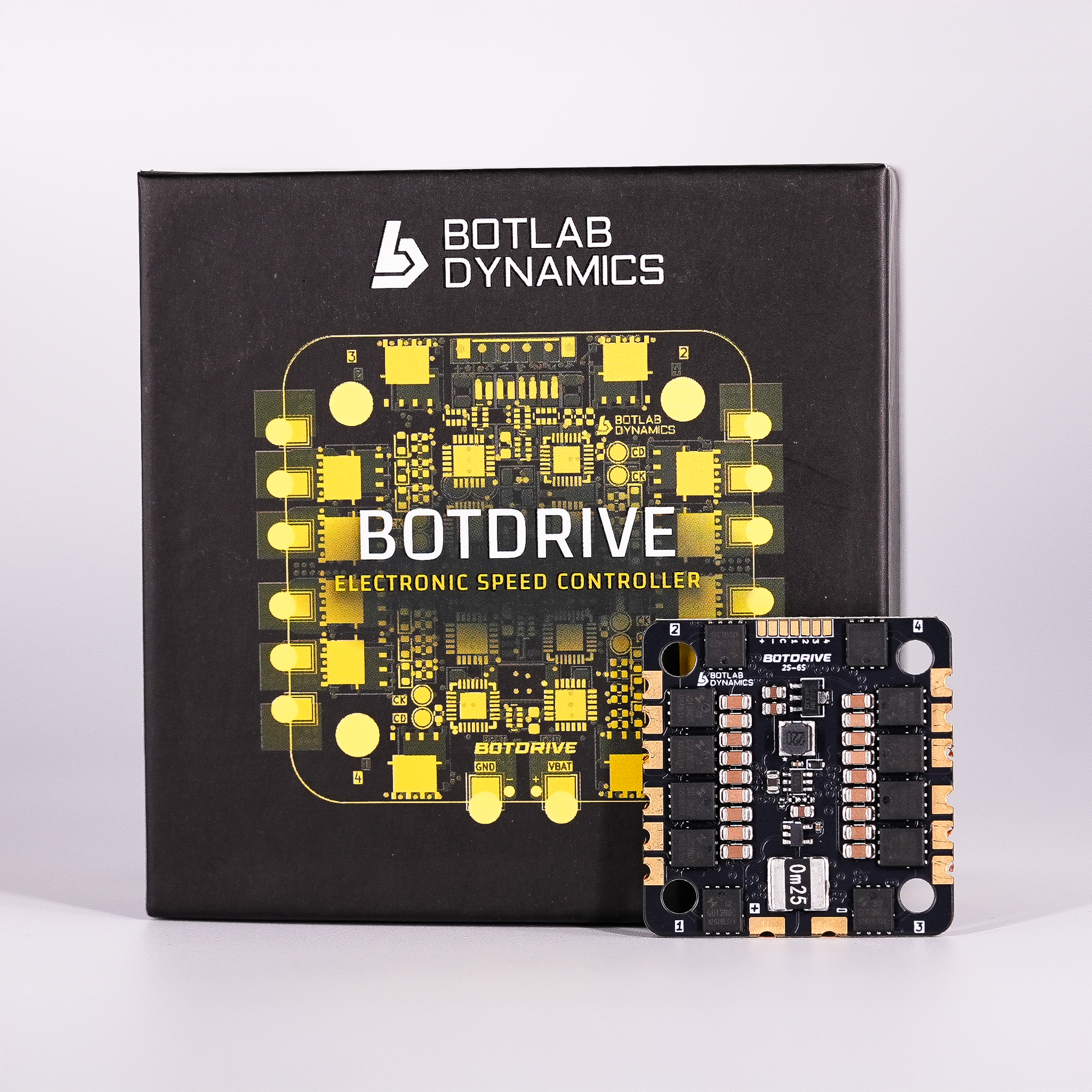

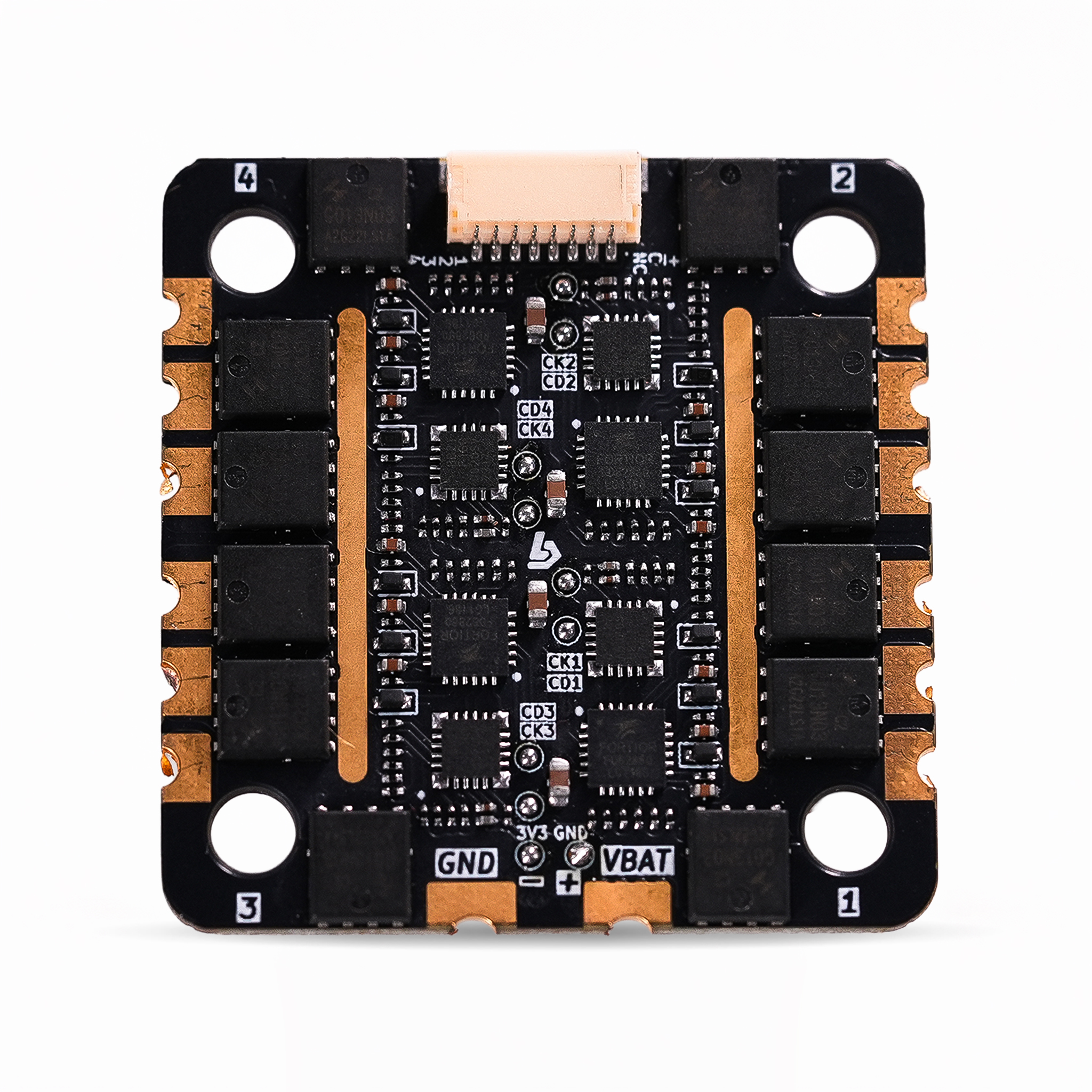

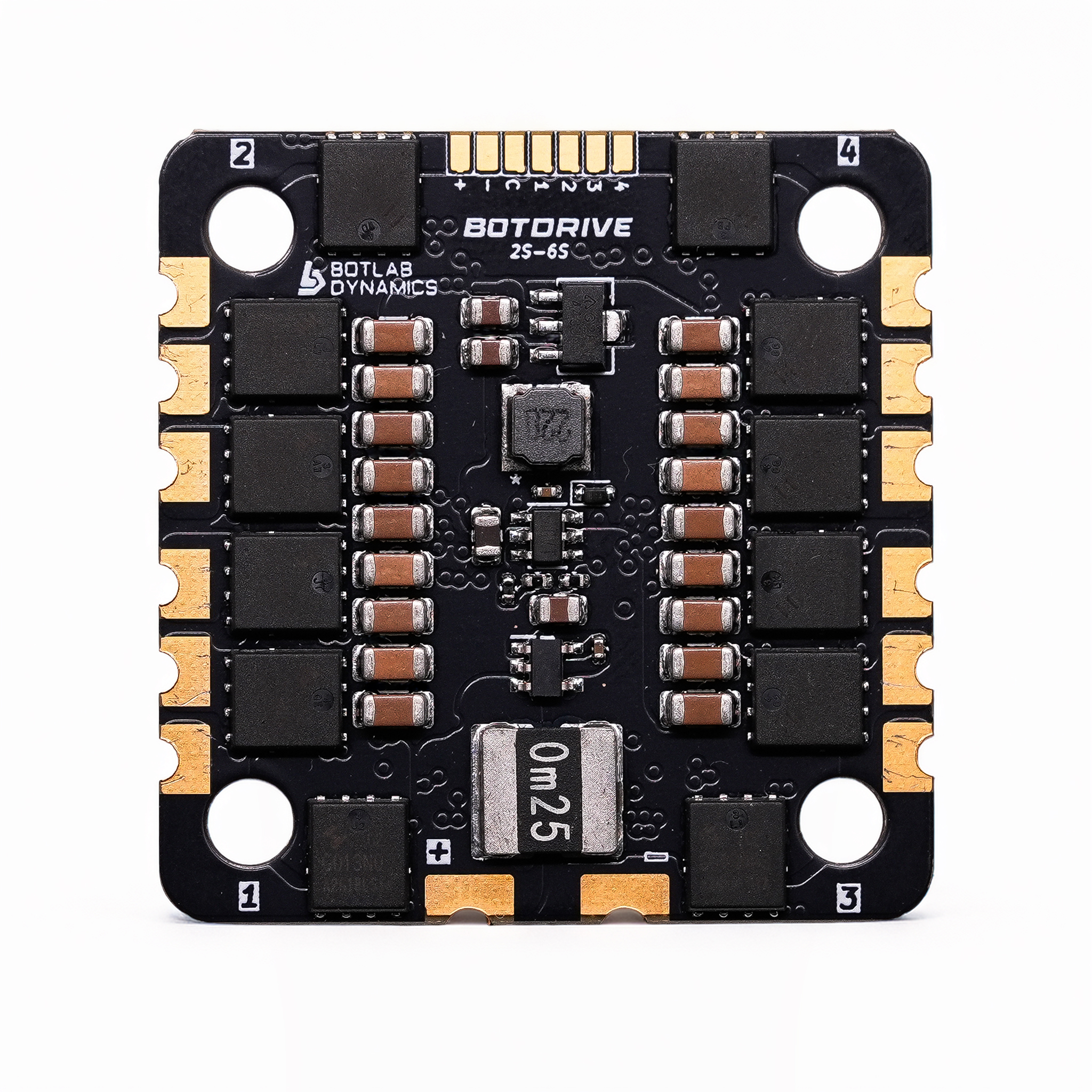

Meet BotDrive 8-Bit, the 4-in-1 ESC built for drone pilots who demand peak performance and bulletproof reliability. Designed for high-powered quadcopters, drones, and RC vehicles, BotDrive combines four 50A ESCs into a single compact 30.5×30.5mm board delivering massive output without adding unnecessary weight or complexity.
Powered by the robust EFM8BB21F16G MCU and equipped with the advanced FD6288Q MOSFET DRIVER, BotDrive ensures ultra-smooth throttle response and precise motor control even under the most aggressive maneuvers.
Supporting 2S–6S LiPo input (8.4V–25.2V) and capable of handling continuous 50A×4 (with burst up to 60A×4), this ESC is ready to power everything from freestyle beasts to high-speed racers. Pre-flashed with BLHeli_S_JH50 firmware and compatible with DSHOT300/600 and PWM protocols, BotDrive gives you total tuning flexibility through easy configurators. Featuring a 47μF 35V low ESR external capacitor for clean power delivery, built-in current sensing, and a lightweight yet rugged 40×41mm profile, BotDrive is engineered for seamless installation and peak endurance.
- Reliable 8-Bit ESC: 4-in-1 ESC with EFM8BB21F16G MCU for smooth motor control.
- High Current Support: Continuous 50A × 4, burst 60A × 4 for stable performance.
- Wide Voltage Range: Supports 2-6S LiPo batteries (12.6V-25.2V).
- Configurable Firmware & Protocols: BLHeli firmware, DSHOT 300/600, and PWM support.
- Compact & Complete: Standard 30.5 × 30.5 mm mounting (40 × 41 mm board) with capacitor, XT60 cable, grommets, and JST-SH cable included.
